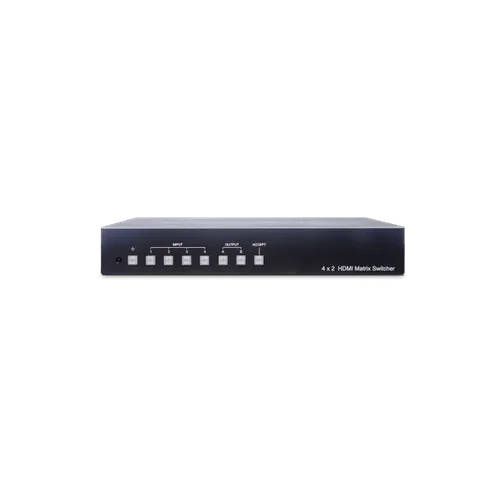

4K 60Hz 4 in 2 out HDMI Matrix Switcher with Audio Extractor & Scaler – HS42M-4K6G

HS42M-4K6G is a 4 input 2 output HDMI matrix switch that allows you to route any 4 Hi-res HDMI videos to any 2 HDMI displays. It not only supports 4K60Hz 4:4:4 resolution but LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA audio. It also supports ARC and the audio extraction function, making the integration of your HDMI source with an advanced audio system easy and hassle-free. Moreover, the matrix has a built-in video scaler function that can upscale the 1080p resolution to 4K, or down-scale the 4K to 1080p to connect a legacy display — allowing every connected display to show the best resolution it can support. With all the powerful features, you can intuitively control and manage the matrix switcher via an IR remote, RS232 commands, and the front panel buttons, depending on different requirements.

• Resolution up to 4K@60Hz 4:4:4.
• Supports HDMI matrix, distribution, separation (combine video from OUTPUT A with audio from OUTPUT B) modes.
• Built-in optical audio & LPCM audio interfaces.
• Built in IR sensor and 3.5mm phone jack for external IR receiver cable.
• Supports resolution up/ down scaling function, 1080p to 4K or 1080p to 4K.
