Description

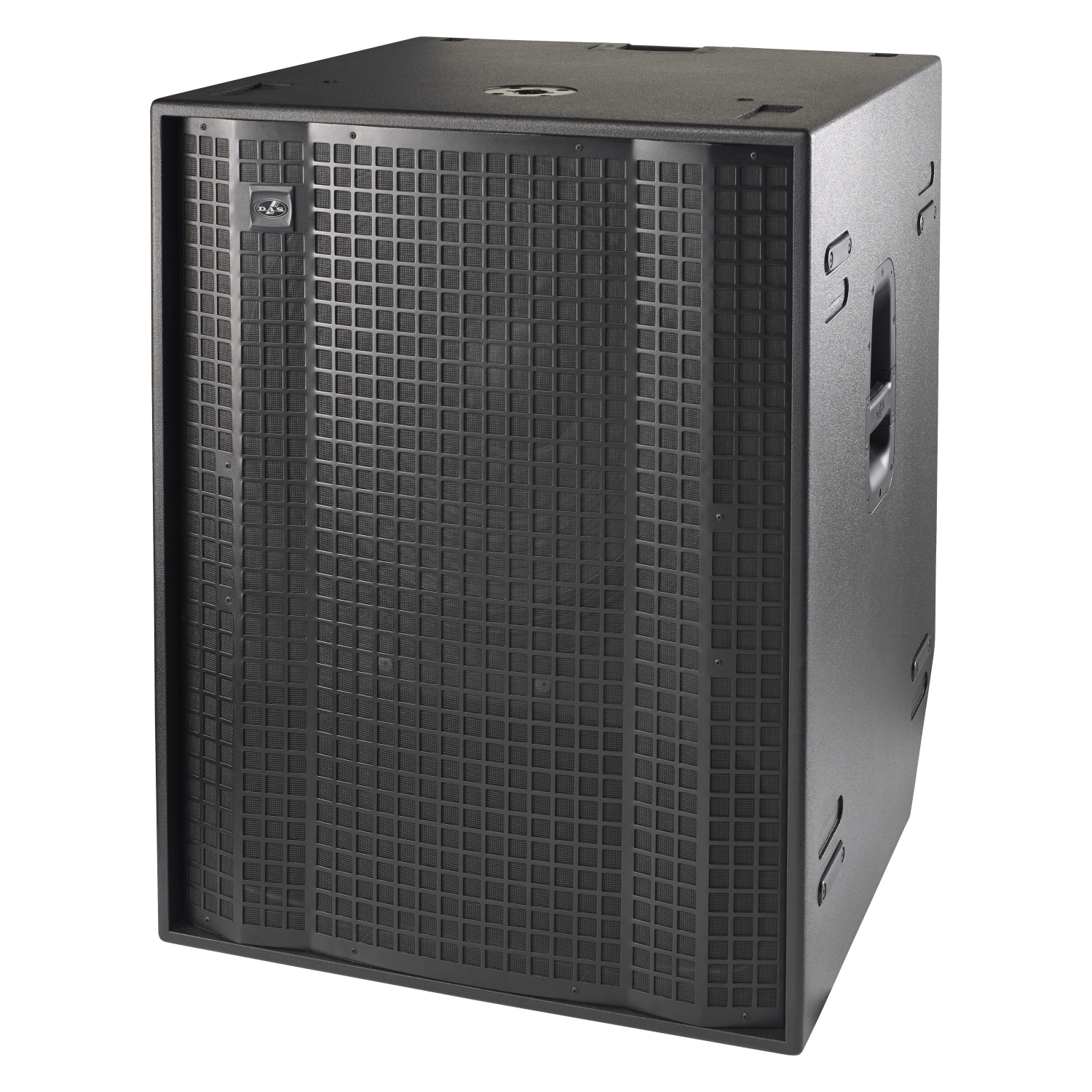

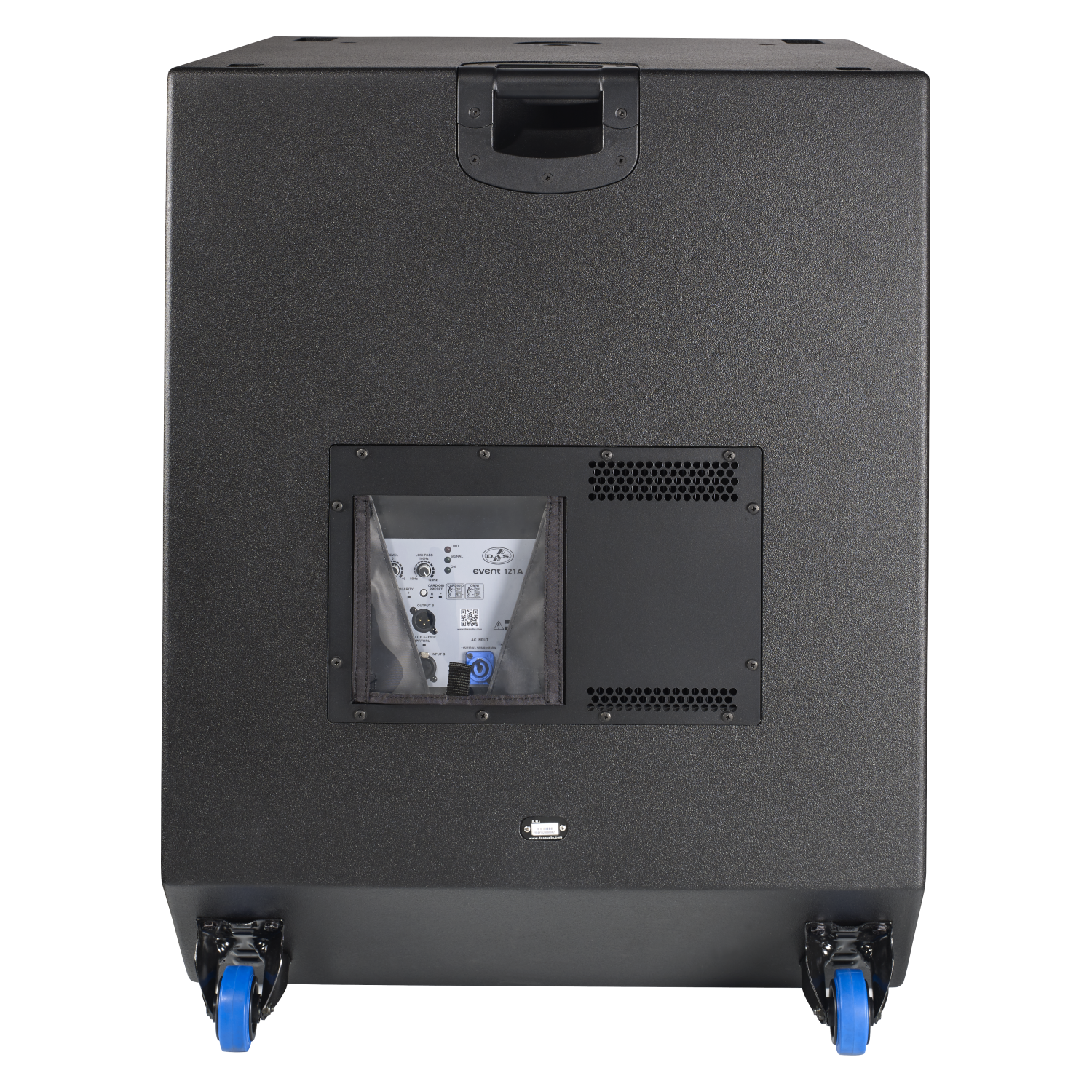

– Active direct radiating rear-loaded subwoofer system – 1 x 21″ DAS 21LFN neodymium loudspeaker – 3200Wpeak – 1600 Wcontinuous – Class D amplifier and digital signal processing (DSP) – Two balanced inputs with stereo filtered output connections – Variable low-pass filter 63 Hz-100 Hz – Top located pole mount socket for TRD-6 optional pole mount – Rear located wheels to ease transport – Top grade Birch cabinet construction – Durable ISO-flex finish |
Nominal LF Amplifier Power | 3200 Wpeak – 1600 Wcontinuous |
Frequency Range (-10 dB) | 30 Hz – 125 Hz |
Rated Peak SPL at 1 m | 141 dB |

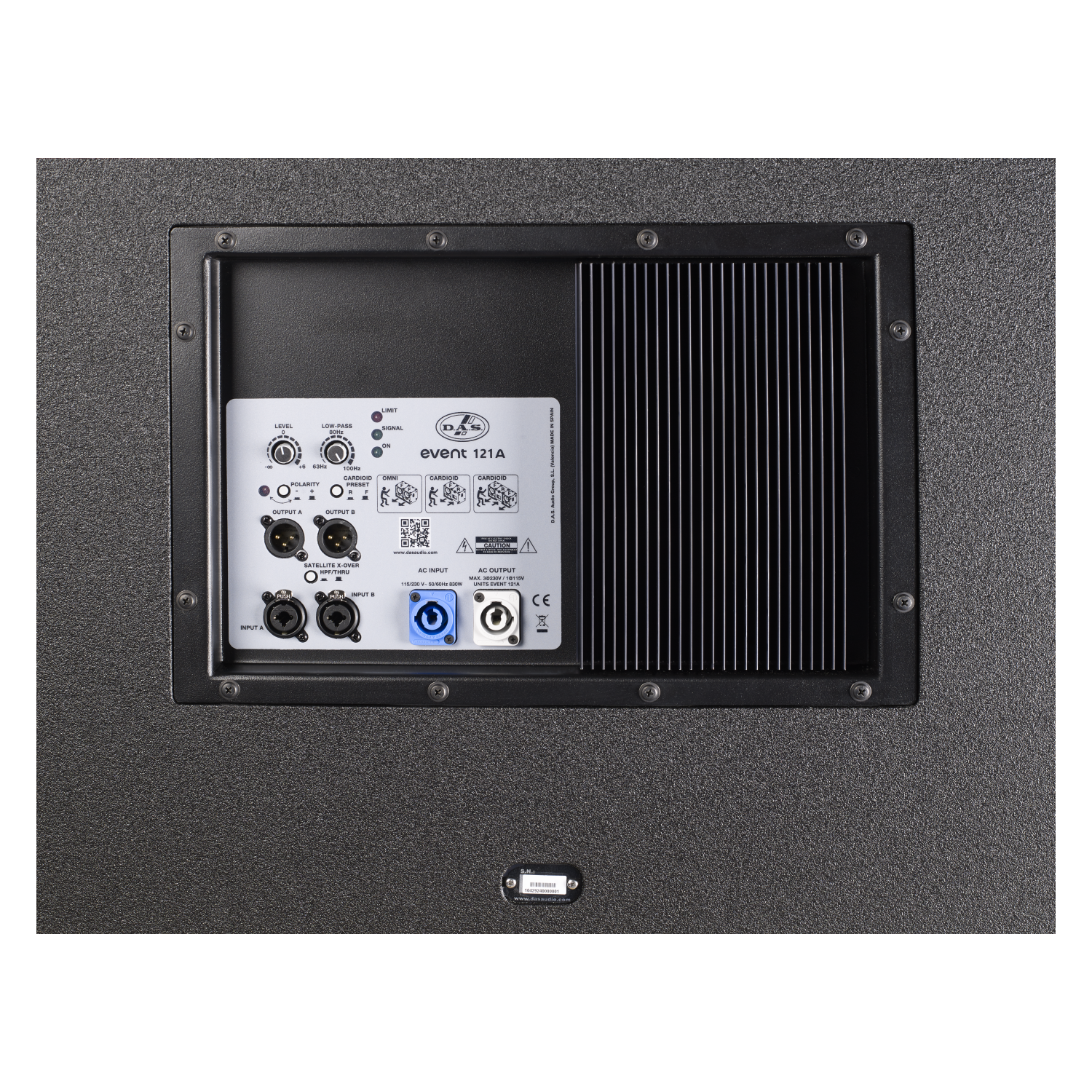

Connectors | INPUT: 2 x Female XLR LOOP THRU: 2 x Male XLR AC INPUT: powerCON NAC 3 FCA AC OUTPUT: powerCON NAC 3 FCB |
AC Requirements | 115 V, 7.2 A, 50 Hz/60 Hz 230 V, 3.6 A, 50 Hz/60 Hz |
Enclosure Material | Birch Plywood |
Color/Finish | Black/ISO-flex |
Dimensions (H x W x D) | 96 x 73.8 x 75 cm 37.8 x 29 x 29.5 in |
Weight | 75 kg (165 lb) |
