Event-M210A

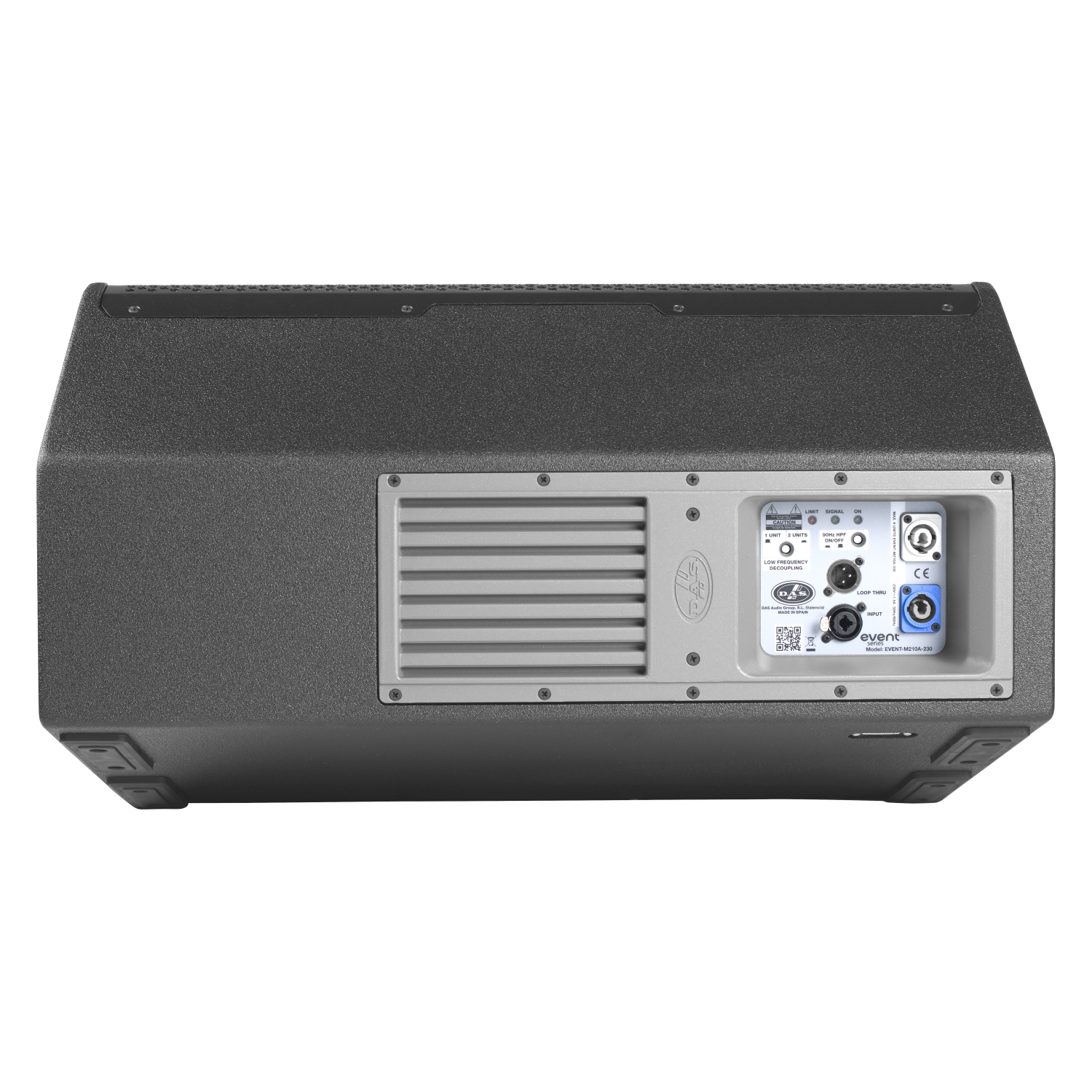

The EVENT-M210A is a three-way stage monitor in a double 10” “dual-band” configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.

Category:

Description

FEATURES

– Powered 3-way system
– Light-weight Class D amplifier topology
– High-end DSP chipsets
– Easy-DSP™ Interface
– Quality Neutrik® connectors
– Top grade Birch cabinet construction
– Durable ISO-flex finish
– Proprietary injected aluminum HF waveguide (not plastic)
– DAS M-60 compression driver

TECHNICAL DATA

Nominal HF Amplifier Power 360 Wpeak
Nominal MF Amplifier Power 360 Wpeak
Nominal LF Amplifier Power 360 Wpeak
Frequency Range (-10 dB) 70 Hz -20 kHz
Rated Peak SPL at 1 m 132 dB
Horizontal Coverage (-6 dB) 60º
Vertical Coverage 20º Up-30º Down
Enclosure Material Birch Plywood
Color/Finish Black ISO-Flex Paint
Connectors Input: Female XLR
Loop Thru: Male XLR
AC Input: powerCON
AC Output: powerCON
AC Requirements 115 V, 3.0 A, 50 Hz/60 Hz
230 V, 1.5 A, 50 Hz/60 Hz
Dimensions (H x W x D) 33.6 x 64.5 x 45.7 cm
13.23 x 25.39 x 17.99 in
Weight 24.5 kg (53.9 lb)
