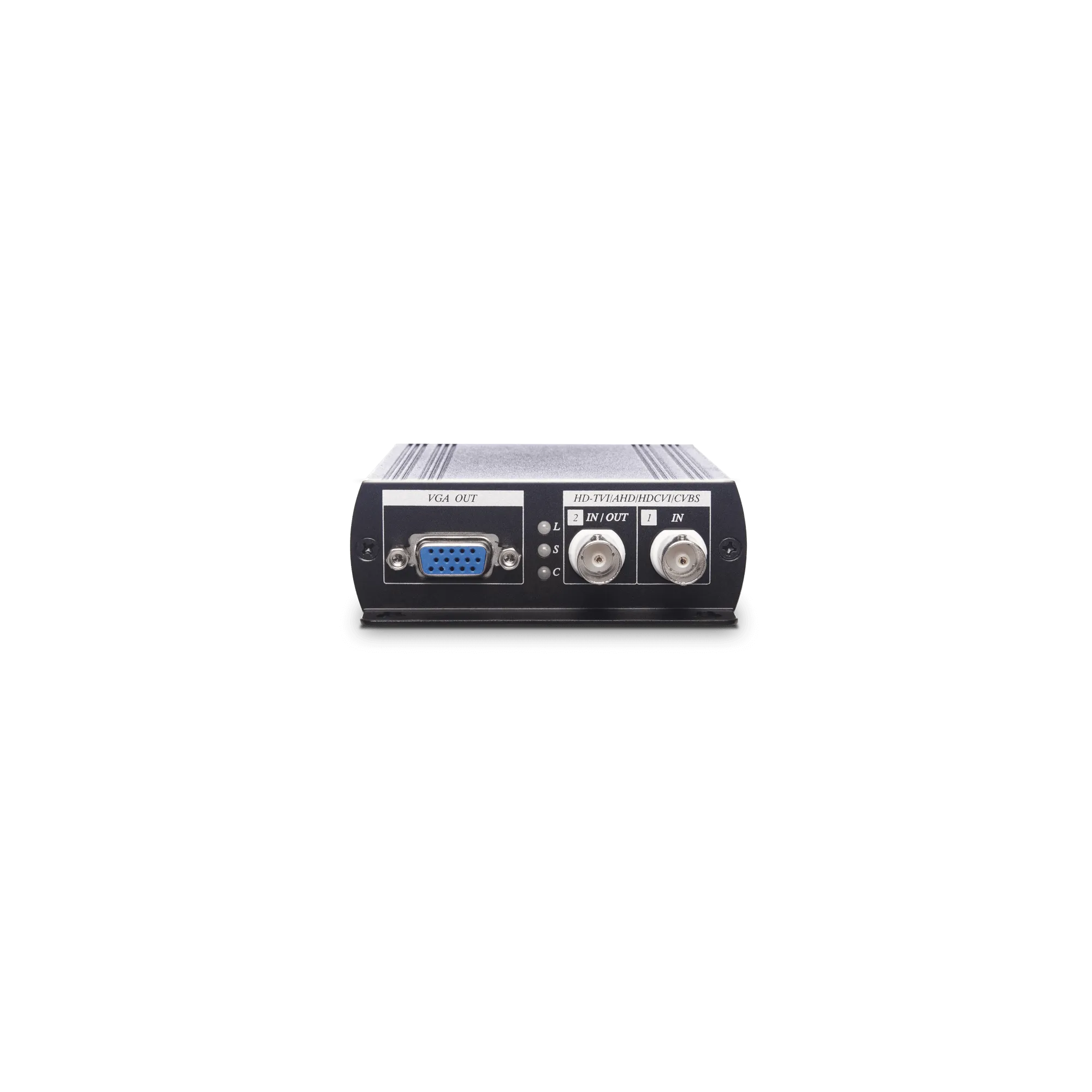

HDCVI/HDTVI/AHD/CVBS to HDMI/VGA/Composite Video/loop out Converter AD001HD4

AD001HD4 is a multifunctional HD converter that turns HD-TVI/ AHD/ HDCVI/ CVBS video to 1080p HDMI/ VGA/ CVBS (show simultaneously). Additionally, the converter has a loop-out port that allows you to connect a second camera, a CVBS monitor, or a DVR. It’s a perfect solution for parking garages and grocery stores to expand the existing CCTV system for additional video displays.

• Converts HD-TVI, AHD, HDCVI, NTSC/PAL, 960H to HDMI, VGA, and composite video.
• Resolution up to 1080p@25/30Hz for input, HDMI & VGA up to 1080p.
• Built-in loop out for an extra analog video input or a HD-TVI, AHD, HDCVI, CVBS output.
• HDMI, VGA, CVBS output simultaneously.
• Built-in PIP, displays two input videos.
• Video Input 1 x 75Ω BNC
• Video Output 1 x HDMI Type A, 1 x D-SUB 15
