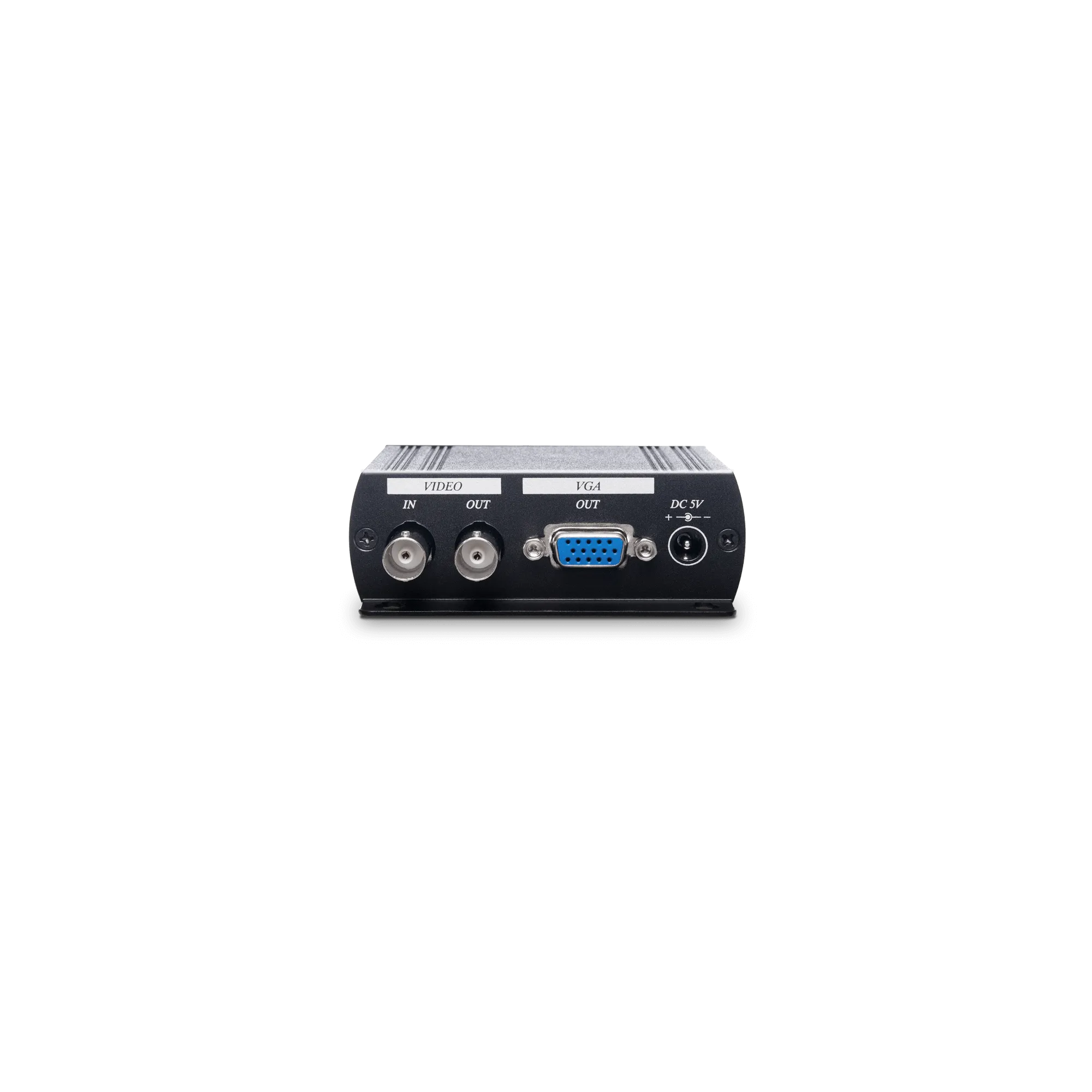

High Resolution Video to VGA Converter AD001H

AD001H is a CVBS to VGA converter that supports NTSC/ PAL video formats for CVBS. The converter also has an extra BNC output for a DVR. It’s an easy-to-use device that supports OSD (On Screen Display) menu to show the current setting status on the monitor and supports auto memory function to restore the previous user’s settings.

• Converts CVBS to VGA signal.
• Resolution up to 1280×1024@60Hz.
• Built-in local loop out for extra analog video output.
• Supports OSD menu to show the parameters of brightness, contrast, saturation, Hue, sharpness, resolution.
• Built in ESD protection.
• Video Input 1 x 75Ω BNC, 1 Vp-p
• Video Output 1 x 0.7 Vp-p RGB, 15pin D female, 1 x 75Ω BNC, 1 Vp-p
